Drag & drop component allows users to drag an object and drop it to a different place.

Content Overview

Usage
Anatomy
Cursors
Drop Area
Use Cases
Reorder List
Move Items from One List to Another List
Move Items from Toolbar to Canvas
Move and Resize Objects

Anatomy

Drag Handle

An element indicating that an object is draggable.

Object Being Dragged (Shadow)

A visual representation of an object being dragged.

Previous State (Ghost)

A visual representation of the original state of an object while being dragged.

Cursors

Following types of cursor are used in drag & drop interaction:

Open hand (grab) — Indicates that an object can be grabbed to be dragged.
Grab hand (grabbing) — Indicates that an object has been grabbed and can be dragged.
Not allowed — Indicates an area in which an object cannot be dropped.
Move — Indicates that an object can be moved.

Resize — Indicates that an area can be resized, typically a row or a column.
Split — Indicates that an area can be split, typically used to resize a split pane.

Drop Areas

A drop area visually indicates where users may drop an object. The drop area types are the following:

Container
Divider
Combination of container and divider

Container

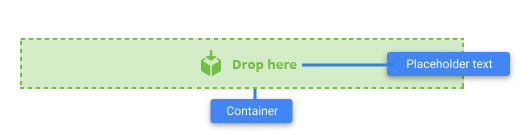

Container is a box that outlines an area in which the user may drop an object.

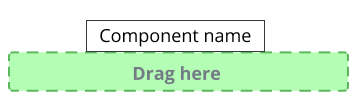

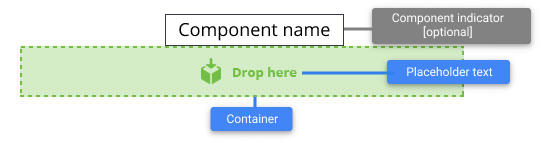

Enabled container:

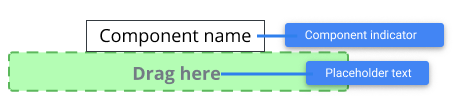

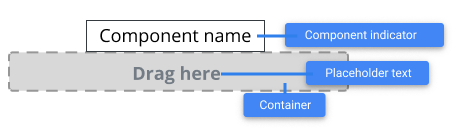

Disabled container:

Divider

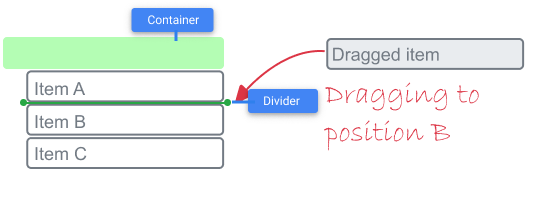

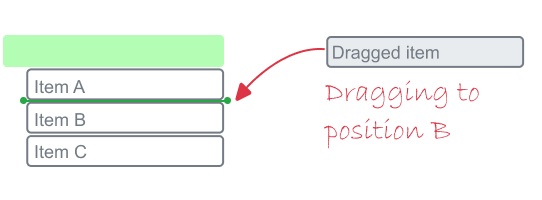

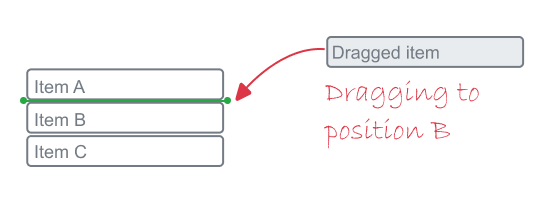

Divider indicates the exact spot where a user can drop an object.

Advanced functionality:

Moving a divider left is going to move the currently dragged item into a parent levels.

Combination of Container and Divider (Multilevel List)

The combination of a container and a divider is typically used to indicate a parent-child relationship.

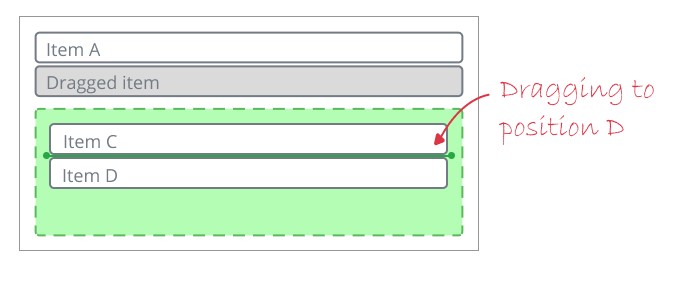

A container identifies the parent of a group and outlines an area where users may drop an object (group).
A divider communicates to the user the exact spot where a child object can be placed.

Examples of use:

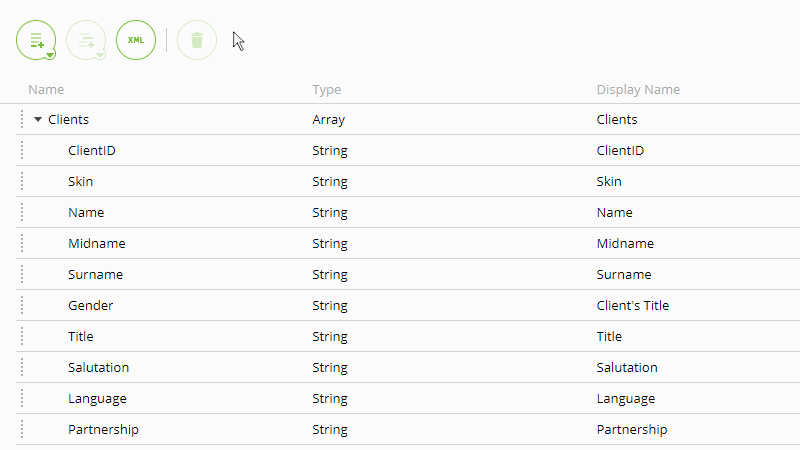

Tree

The final position of the dragged item in the Tree component depends on whether the parent is closed or open:

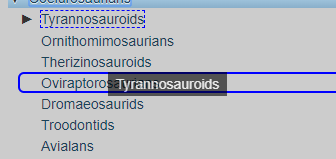

If the parent is closed will be placed on the first child position.

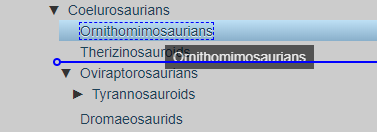

If the parent is open it can be placed in any a slot between the items.

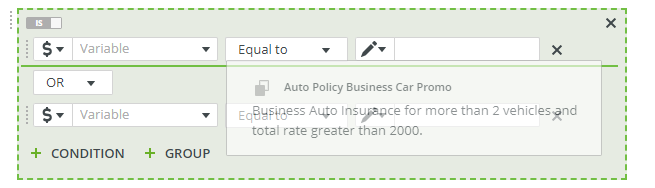

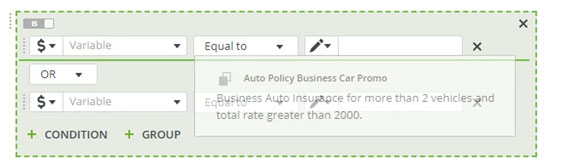

Rule Editor

Visibility of the Drop Area

When to display the drop area depends on the use-case for the drag & drop interaction:

Visible when starting to drag

Benefits: visible after the dragging starts, higher discoverability
Disadvantages: cluttering the design if too many options are available
Usage: list, tree, table

Visible on dragging over the drop area

Benefits: visible only after the dragging over the drop area starts
Disadvantages: lower discoverability, higher uncertainty where to drop

Drag & Drop Results

Dragging and dropping the original object can result in:

Move: An object moves from its original position to a new one.
Copy: A copy of the original object is created and moves to a new position.

Use Cases

Drag & drop interactions are used in the following use cases:

Reorder list - cards, tree
Move items from one list to another list - cards, tree
Move items from toolbar to canvas
Resize objects
Move objects

Reorder List

#	Step	Mouse Cursor	Origin	Drop Area	Notes
1	Draggable object indication	n/a	Visible drag handle		Indicates that dragging is possible. When drag and reorder items are expected, a drag handle may be displayed.
2	Mouse over a draggable object	Grab	Hover and visible drag handle (if not visible in step 1)		If dragging is the only action assigned to an item, the mouse cursor appears anywhere over an object. If more actions are assigned to an item (e.g. table item), the mouse cursor only changes when the mouse is over the drag handle.
3	Mouse down on a draggable object	Grab	Selected
4	Mouse drag	Grabbing	Previous state (Ghost), Object is being dragged (Shadow)
5	Drop area indication	Grabbing	Previous state (Ghost), Object is being dragged (Shadow)	Divider
6	Invalid drop	Not Allowed	Previous state (Ghost), Object is being dragged (Shadow)
7	Mouse release (object drop)			Success animation	The dragged object is placed at the new location, Shadow disappears (gradually), Ghost disappears.

Move Items from One List to Another List

#	Step	Mouse Cursor	Origin	Drop Area	Notes
1	Draggable object indication	n/a	Visible drag handle		Indicates that dragging is possible. When drag and reorder items are expected, a drag handle may be displayed.
2	Mouse over a draggable object	Grab	Hover and visible drag handle (if not visible in step 1)		If dragging is the only action assigned to an item, the mouse cursor appears anywhere over an object. If more actions are assigned to an item (e.g. table item), the mouse cursor only changes when the mouse is over the drag handle.
3	Mouse down on a draggable object	Grab	Selected
4	Mouse drag	Grabbing	Previous state (Ghost), Object is being dragged (Shadow)
5	Drop area indication	Grabbing	Previous state (Ghost), Object is being dragged (Shadow)	Simple list: Divider Multilevel list: Combination of container and divider
6	Invalid drop	Not Allowed	Previous state (Ghost), Object is being dragged (Shadow)	NO Divider or/and Disabled container
7	Mouse release (object drop)			Success animation where applicable	The dragged object is placed at the new location, Shadow disappears (gradually), Ghost disappears.

Move Items from the Toolbar to the Canvas

#	Step	Mouse Cursor	Origin	Drop Area	Notes
1	Draggable object indication	n/a	No handle
2	Mouse over a draggable object	Grab	Hover and visible drag handle (if not visible in step 1)
3	Mouse down on a draggable object	Grab	Selected
4	Mouse drag	Grabbing	Previous state (Ghost), Object is being dragged (Shadow)
5	Drop area indication	Grabbing	Previous state (Ghost), Object is being dragged (Shadow)	Timing: When dropped to object; Type: Enabled Container
6	Invalid drop	Not Allowed	Previous state (Ghost), Object is being dragged (Shadow)	NO Divider or/and Disabled container
7	Mouse release (object drop)			Success animation where applicable	The dragged object is placed at the new location, Shadow disappears (gradually), Ghost disappears.

Resize Objects

#	Step	Mouse Cursor	Origin	Notes
1	Draggable object indication	n/a	No handle	Resizing columns in grid or table. Resizing a split pane Drag indicator
2	Mouse over a draggable object	Resize columns; Resizing a split pane	Hover and visible drag handle (if not visible in step 1)
3	Mouse down on a draggable object	Resize	Selected
4	Mouse drag	Resize	Highlighted Separator
5	Mouse release (object drop)	Resize		The dragged object is placed at the new location.

Move Objects

#	Step	Mouse Cursor	Origin	Notes
1	Draggable object indication	n/a	No handle
2	Mouse over a draggable object	Grab	Hover and visible drag handle (if not visible in step 1)
3	Short and long mouse click on a draggable object	Grabbing	Selected
4	Mouse drag	Grabbing
5	Mouse release (object drop)	Move		The dragged object is placed at the new location
